SS316L / TP316L Stainless Steel Tube Annealed & Pickled Pipe With Cold Rolled
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 2900-10000USD/TON |
|---|---|---|---|
| Packaging Details : | Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSSP24 |
|
Detail Information |
|||
| Material: | 300 Series ,309S,310S, 316Ti , 317L | Delivery Condition: | Soft / Hard |
|---|---|---|---|
| NDT: | Eddy Current Or Hydraulic Test | End Cut: | Plain End ( PE ) / Bevel End ( BE ) |
| Type: | Seamless | Inspection: | 100% |
| Highlight: | seamless stainless pipe,seamless stainless tube |
||
Product Description

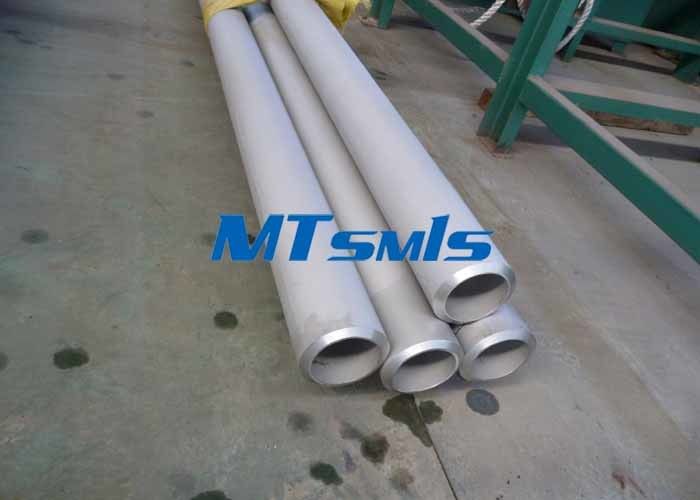

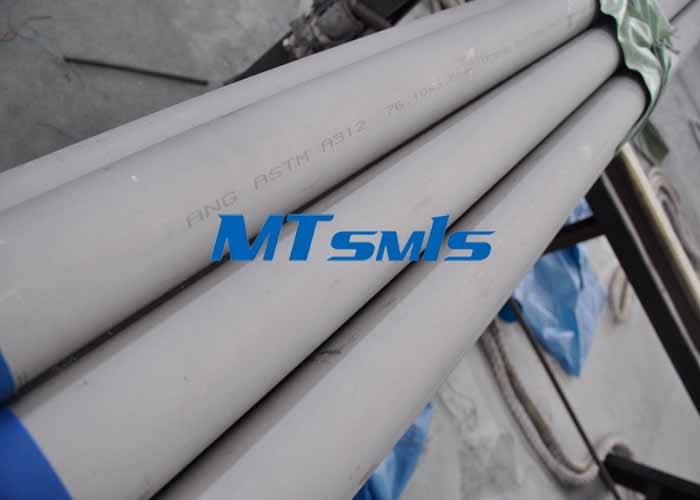

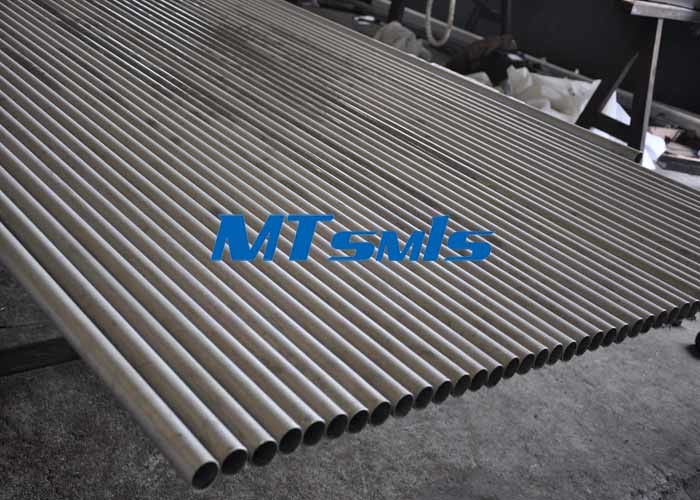

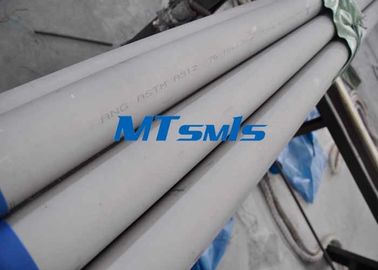

ASTM A269 TP309S / 310S / 317L Stainless Steel Seamless Pipe With Pickled Surface
Product Description:
| Outer Diameter | 10.3-1219mm |
| Wall Thickness | 1.24-59.54mm (0.04''-2'' ) |
| NPS | 1/8"-24" |
| Schedule | 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S |
| Material Grade | 304/304L/316/316L/321/309S/310S, etc |
| Standard | ASTM A269, ASTM A312, etc |
| Application | used in Fluid and Gas Transport, Structure and Machining,etc |
| Certificates | ISO9001:2008, PED, BV |
| Process Method | Cold Drawn/ Cold Rolled |
| Surface Finish | Annealed/ Polished |
| Package | Woven bag for each piece, then packed in seaworthy wooden cases |
| Delivery Time | 20-60 Days after receiving the deposit (Normally according to the order quantity) |
| Price Item | FOB, CIF or as negotiation |
| Payment | T/T(30% in advance, 70% against the BL Copy) or as negotiation |
| Quality Requirement | Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable |
| Main Market | Europe, Middle East, Southeast Asia, South America, etc |
Chemical Composition:
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
